Maglev Train Tunnel Boom Poses Challenge

Silencing the Boom: How Floating Trains Are Conquering a Sonic Barrier

Engineers developing ultra-fast magnetic levitation trains believe they have overcome a critical obstacle known as “tunnel boom.” This explosive sound, which is produced when a train leaves a tunnel at high speed, has long posed a challenge to the feasibility of next-generation land travel. A groundbreaking solution that uses sound-absorbing barriers at tunnel openings promises to mitigate these powerful air-pressure waves. The innovation paves the way for the deployment of China’s latest maglev prototype, a vehicle designed to glide at a staggering 600 kilometres per hour (km/h). This breakthrough addresses significant safety and environmental concerns, pushing the dream of near-supersonic ground transport closer to reality.

The ‘Tunnel Boom’ Phenomenon

When a fast-moving train goes into a tunnel's restricted space, it acts like a piston, compressing the air ahead of it. This process creates pressure fluctuations that build up and coalesce. Upon the train’s exit, this compressed air expands rapidly, producing pressure waves of a low frequency. The resulting sound is a loud, startling “tunnel boom,” a phenomenon related to but distinct from the sonic booms created when an aircraft exceeds the sound barrier. These booms present a serious risk, capable of disturbing people and wildlife for miles around. Furthermore, the intense pressure waves can inflict structural damage on buildings and infrastructure close to the tunnel's exit, creating a major safety hazard.

A Worsening Problem at Higher Speeds

The challenge of the tunnel boom is already a well-documented issue for standard high-speed railway networks, where trains run at velocities reaching 350km/h. However, the problem intensifies dramatically as speeds increase. The intensity of the pressure wave escalates rapidly with velocity, while the critical tunnel length needed to produce a boom shortens. For instance, a vehicle moving at 600km/h can trigger a pressure boom inside a tunnel only two kilometres long. In contrast, for standard high-speed rail, this effect typically only occurs in tunnels exceeding six kilometres in length. This has been a significant limiting factor in designing faster rail systems.

An Ingenious Sound-Dampening Solution

Chinese researchers have pioneered an innovative solution to this vexing problem. By installing 100-metre-long sound-dampening barriers at the entrances and exits of tunnels, they can effectively neutralise the pressure waves. These buffers feature a highly porous structure, which works in tandem with specialised coatings applied to the tunnel’s interior walls. This combination permits the compressed air to get out before the vehicle arrives at the tunnel exit. The system functions much like a muffler attached to a gun, suppressing the explosive release of energy. Tests show this method can reduce pressure waves by a remarkable 96%.

The Promise of a Quieter Future

This technological breakthrough has far-reaching implications for the future of high-speed transport. By effectively eliminating the tunnel boom, it enhances operational safety and dramatically reduces noise pollution. This makes the prospect of building new maglev lines near populated areas or ecologically sensitive habitats far more viable. For passengers, the innovation promises a more comfortable and serene journey, free from the jarring pressure changes associated with entering and exiting tunnels at extreme speeds. The successful mitigation of this issue is a critical step towards the widespread adoption of ultra-fast maglev technology. It removes a major environmental and safety barrier that has long stood in the way of progress.

The Mechanics of Magnetic Levitation

Magnetic levitation, or maglev, uses powerful magnetic forces to lift a vehicle over its guideway, eliminating physical contact. The train floats, sometimes at an elevation of only 10 millimetres, and is then pushed forward by another set of electromagnets. This contact-free design means magnetic levitation vehicles do not experience the friction that limits conventional wheeled trains. As traditional fast-moving trains get faster, the degradation of wheels and tracks increases exponentially, leading to higher maintenance costs and speed limitations. By removing this fundamental constraint, maglev technology opens the door to vastly greater velocities, redefining the possibilities of land-based travel.

Two Paths to Levitation: EMS and EDS

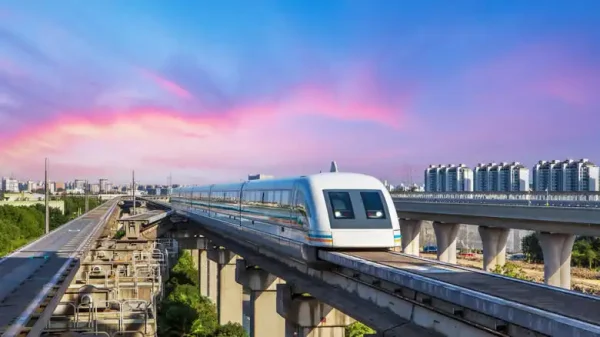

Engineers have developed two primary methods for achieving magnetic levitation. The first is the EMS method, where the train's U-shaped undercarriage wraps around a steel rail. Electromagnets located on the vehicle are activated, generating attractive forces that lift the vehicle towards the guideway. This is the technology used in Shanghai's commercial maglev line. The second approach, EDS, is planned for Japan's Chuo Shinkansen. In an EDS system, both the train and its U-shaped guideway contain powerful superconducting coils. While the vehicle is in motion, these coils induce magnetic fields that create a mix of pushing and pulling forces, providing a stable and robust levitation effect.

China’s High-Speed Rail Dominance

Although maglev technology is experiencing a resurgence, China's existing transport landscape is dominated by standard high-speed railway. Following the launch of the Shanghai maglev in 2004, the national focus shifted decisively towards building a comprehensive network of wheeled fast-moving trains. This strategic pivot was immensely successful. Today, China's high-speed rail network is the largest in the world, spanning an incredible 48,000 kilometres, with many more lines still under construction. This vast infrastructure connects all of the country's major economic hubs, revolutionising domestic travel and setting a global benchmark for modern railway development. The success of this network provides a robust foundation for integrating next-generation maglev lines.

Image Credit - Yahoo! News

The Return of the Maglev

After years of focusing on its conventional network, China is now spearheading a powerful revival of maglev technology. The government-owned company CRRC unveiled its new 600km/h prototype in 2021, signalling a renewed ambition to lead the world in ultra-fast transport. Recent exhibitions, such as Modern Railways 2025 in Beijing, have showcased this advanced vehicle, which is currently undergoing rigorous testing and feasibility assessments. This new type of magnetic levitation vehicle is not intended to replace the existing high-speed network but to supplement it, offering point-to-point services that bridge the speed gap between rail and aviation.

A Seamless Passenger Experience

The experience of travelling on a magnetic levitation vehicle is fundamentally different from that of a standard train. With no wheels on a track, the journey is exceptionally smooth and quiet. Passengers describe only the low, unobtrusive hum of the electromagnets as the vehicle glides effortlessly through the landscape. The absence of mechanical noise and vibration creates a serene and comfortable cabin environment, even at speeds approaching those of commercial aircraft. This advanced passenger experience is a key selling point for the technology, offering a premium travel alternative that combines the velocity of flying with the convenience and comfort of rail.

The Beijing-Shanghai Vision

While no routes are officially confirmed, there is widespread expectation that the first major application of the new 600km/h maglev will be a line linking the capital city of Beijing to the financial hub of Shanghai. This route, one of the busiest transport corridors in the world, would see journey times slashed from the current 4.5 hours by high-speed rail to just 2.5 hours. Such a timing would make the maglev service directly competitive with air travel, especially when considering the time spent on airport check-in and security procedures. This flagship project would serve as a powerful demonstration of China's technological prowess.

Advanced Onboard Technology

The latest magnetic levitation prototype is more than just a fast vehicle; it is a showcase of cutting-edge digital technology. The vehicle is outfitted for fully automatic driving, enabled by an integrated suite of advanced systems. These include 5G network communication for reliable data transfer, artificial intelligence-powered video capture for monitoring, and sophisticated acoustic sensors for real-time diagnostics. High-temperature superconducting magnets provide powerful and reliable traction, while a specialised low-temperature thermostat and refrigeration system ensure the magnetic system remains stable even under extreme operating conditions. These innovations are crucial for ensuring the safety and reliability of a vehicle travelling at such high velocities.

Economic and Environmental Advantages

In China, high-speed rail offers a compelling economic alternative to flying, with tickets often costing half as much as an equivalent flight. The environmental case is even stronger. On average, air travel emits seven times the CO2 per kilometre compared to high-speed rail, representing a significant potential for carbon savings. Maglev technology further enhances these benefits. With no direct pollution emissions and lower energy consumption at comparable speeds, magnetic levitation vehicles are a remarkably clean mode of transport. This makes them a vital tool in the global effort to reduce the carbon footprint of transport systems.

The High Cost of Innovation

Despite their long-term benefits, the primary barrier to the widespread adoption of maglev trains remains their high initial construction cost. The guideways for maglev systems must be built to incredibly precise tolerances, making them more expensive to construct than conventional railway lines. Furthermore, because maglev technology is incompatible with existing rail infrastructure, new networks must be built from scratch. This represents a colossal investment. However, developers claim that these high upfront costs are offset by lower long-term operational and maintenance expenses, as the non-contact nature of maglev systems dramatically reduces degradation.

Japan’s Rival Ambition: The Chuo Shinkansen

China is not the sole country pursuing long-distance maglev travel. Japan has pinned its hopes on its Chuo Shinkansen, a magnetic levitation line intended to link Tokyo and Osaka via the city of Nagoya. Operating at a top speed of 505km/h, the new line is projected to reduce the journey between Tokyo and Osaka down to a mere 67 minutes, a significant reduction from the 2.5 hours on the current conventional Shinkansen. The project is a monumental undertaking, with about 90% of the line running through deep tunnels bored through the country's mountainous interior.

Delays and Rising Costs in Japan

Japan's Chuo Shinkansen has encountered significant delays and soaring costs. Initially planned for a limited start in 2027, the opening date for the Tokyo-Nagoya section has been pushed back, and its revised schedule is now unclear, possibly extending to 2034 or later. The primary cause of the delay is a dispute with the government of Shizuoka Prefecture over tunnelling. Officials have raised concerns that construction could impact the water volume of the Oi River, a vital local resource. These setbacks, combined with construction costs estimated to exceed nine trillion yen, highlight the immense financial and political challenges of implementing such megaprojects.

South Korea’s Urban Maglev Experiment

Beyond inter-city high-speed lines, maglev technology has also been applied to urban transit. The Incheon Airport Maglev in South Korea, which opened in 2016, was the world's second commercially operating urban maglev line. It was designed to provide a low-speed, quiet, and efficient link between airport terminals and nearby leisure complexes. However, the project struggled to attract riders, with passenger numbers in 2019 reaching only 11% of expected levels. High maintenance costs and low usage led to the line’s indefinite closure in 2023, serving as a cautionary tale about the importance of market demand and economic viability for such projects.

The German Origins of Maglev

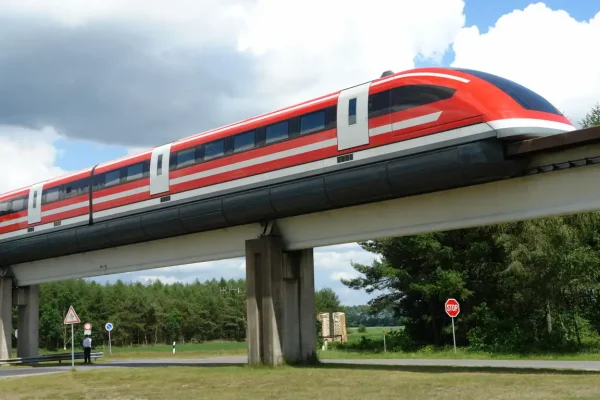

The foundational technology for modern high-speed maglev was pioneered in Germany with the Transrapid system. An extensive test facility in Emsland demonstrated the viability of the technology for decades. Despite developing this world-leading system, Germany never built a commercial maglev line. A mix of significant expenses, political indecision, and the efficiency of its existing high-speed ICE network prevented the project from gaining traction. Ultimately, the German-developed Transrapid technology found its first and only commercial application not in its home country, but in the construction of the Shanghai Pudong airport line, a project that kickstarted China’s maglev journey.

Beyond Maglev: The Hyperloop Dream

As engineers push the boundaries of maglev, another futuristic transport concept is capturing imaginations: the hyperloop. This concept envisions pods, much like magnetic levitation vehicles, moving at velocities over 1,000 km/h through sealed, low-pressure tubes. By removing air resistance, the primary factor limiting maglev speeds, hyperloop could theoretically achieve velocities far exceeding any existing mode of ground transport. While the idea is compelling, the technical and financial hurdles are immense. Maglev technology is proven and operational, whereas hyperloop remains largely theoretical, a bold but distant vision for the future of travel.

A New Era for Global Transport?

The successful development of a solution to the tunnel boom marks a pivotal moment for maglev technology. By conquering this fundamental physical barrier, researchers have brought the prospect of 600km/h land travel a significant step closer to widespread reality. China's focused investment, coupled with its vast engineering capacity, positions it at the forefront of this transportation revolution. While immense challenges related to cost and infrastructure remain, the path towards a future of ultra-fast, clean, and efficient land-based travel is becoming clearer. The floating train is no longer a distant dream, but a tangible technology poised to reshape our world.
