Fehmarnbelt Tunnel Joins Nations
An Underwater Feat: Building the World's Longest Immersed Tunnel
Engineers are currently driving forward an extraordinary underwater construction project. This initiative connects Germany and Denmark physically, crossing beneath waters separating the two nations, the Baltic Sea. The ambitious undertaking promises a dramatic reduction in journey times for travellers. It will significantly strengthen transport pathways connecting the Scandinavian peninsula with the central European mainland. Named the Fehmarnbelt Fixed Link, the structure will stretch for eighteen kilometres, or roughly eleven miles. Upon completion, it achieves distinction as the globe's most extensive immersed tunnel accommodating both railway traffic and road vehicles. Its design represents a triumph of modern engineering practice. The construction method involves carefully placing pre-fabricated tunnel portions directly onto the prepared seabed before joining them together sequentially underwater. This approach marks a departure from traditional tunnelling methods.
The Danish Nerve Centre
Operations central to this vast project radiate from the tunnel's northern portal. This crucial site is situated along Lolland's shoreline, a Danish island located in the country's south-east. The primary area for construction activity sprawls over an impressive five hundred hectares, equivalent to more than 1,200 acres. This expansive facility houses a purpose-built harbour facilitating marine operations. Critically, it also contains a large-scale factory dedicated solely to manufacturing the immense concrete tunnel segments. These individual units are technically termed 'elements'. The scale of the infrastructure established here underscores the project's immense scope and complexity. Planners meticulously designed the site to optimise the complex logistics involved in producing and handling the colossal tunnel components before their journey out to sea. The location benefits from direct access to the water, essential for transporting the finished elements.
Manufacturing Mammoth Tunnel Sections
Henrik Vincentsen directs Femern A/S, the Danish state entity managing the tunnel's development. Vincentsen previously remarked on the colossal nature of the Lolland facility. Producing each individual tunnel element is a significant undertaking in itself. Every standard element measures 217 metres long, nearly 712 feet, and boasts a width of 42 metres. The construction process involves casting high-strength concrete around intricate cages of reinforced steel. This method ensures structural integrity capable of withstanding immense underwater pressure. The sheer volume of materials required highlights the project’s industrial scale. Thousands of tonnes of steel and concrete go into every single segment before it even leaves the factory floor. Quality control remains paramount throughout the intricate fabrication process. Engineers rigorously test materials and construction techniques.
Image Credit - BBC
An Innovative Immersed Tunnel Approach
Many familiar underwater crossings, including the fifty-kilometre Channel Tunnel linking Great Britain and France, involved boring deep into the rock beneath the seabed. The Fehmarnbelt project, however, utilizes a distinct immersed tunnel technique. Workers will precisely link eighty-nine standard elements and ten special elements end-to-end upon the seabed. This modular assembly process resembles connecting giant building blocks. Vincentsen emphasized the pioneering aspect of this venture. While engineers have constructed immersed tunnels previously, none approach the Fehmarnbelt link's sheer length or complexity. This method was chosen specifically due to the challenging geological conditions present in the Fehmarn Belt strait. The seabed composition made traditional boring techniques less suitable or economically viable for this particular crossing.
Financing a Landmark European Project
Realising such a monumental infrastructure vision carries a substantial financial commitment. Current estimates place the total project cost at approximately 7.4 billion euros. This figure translates to roughly 8.1 billion US dollars or 6.3 billion pounds sterling based on typical exchange rates. The Kingdom of Denmark shoulders the primary financial responsibility for the tunnel's development. European Union funding provides significant supplementary support. Specifically, support originating from the European Commission amounted to 1.3 billion euros through its Connecting Europe Facility (CEF) programme. This contribution underscores the tunnel's strategic importance beyond just bilateral Danish-German relations. It represents one of the largest single infrastructure investments undertaken within the region for many decades. The project forms a key component of broader EU transport policy ambitions, aiming to improve connections spanning the European landmass.
Revolutionising Regional Travel

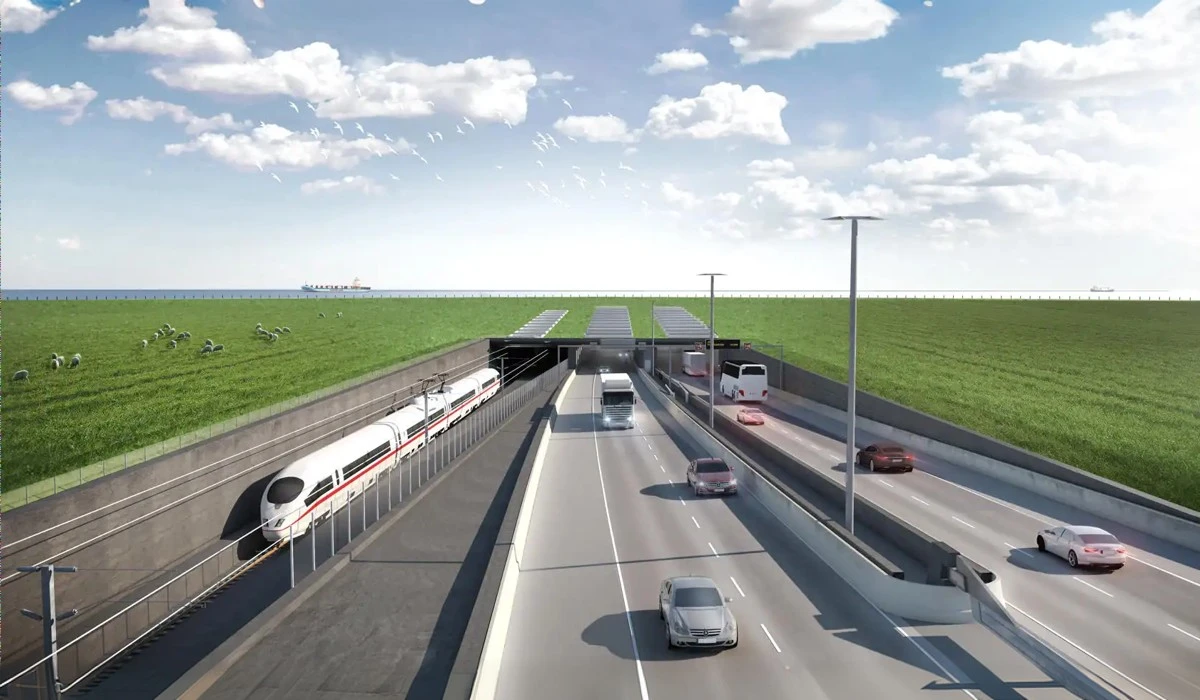

The Fehmarnbelt tunnel promises a radical transformation in travel efficiency linking lower Denmark and upper Germany. Once operational, the journey connecting Rødbyhavn in Denmark and Puttgarten on the German island of Fehmarn will shrink dramatically. Motorists can expect a transit time of just ten minutes through the tunnel. Train passengers will experience an even quicker crossing, taking a mere seven minutes. This offers a stark contrast to the existing ferry service, which typically requires around forty-five minutes for the sea voyage, excluding waiting and boarding times. The new direct rail link also bypasses the longer land route through Jutland in western Denmark. Consequently, journey durations connecting the key cities Copenhagen and Hamburg will effectively halve, decreasing from nearly five hours to approximately two and a half hours.
A Greener Transport Corridor
Beyond speed and convenience, the Fehmarnbelt Fixed Link offers significant environmental advantages. The direct route substantially shortens the overall travel distance compared to existing options. This reduction directly translates into lower fuel consumption for both freight lorries and passenger vehicles using the tunnel. Consequently, carbon dioxide emissions associated with transport across the strait will decrease notably. The efficient electric rail connection further promotes a shift towards more sustainable modes of transport. It provides an attractive, lower-carbon alternative for both passenger journeys and the movement of goods throughout the region. Vincentsen highlighted the project's wider significance, positioning it not merely as a link between two nations but as a vital integration of Scandinavia into the central European transport network. Shortening journeys by 160 kilometres offers tangible benefits for air quality.
Inside the Emerging Structure

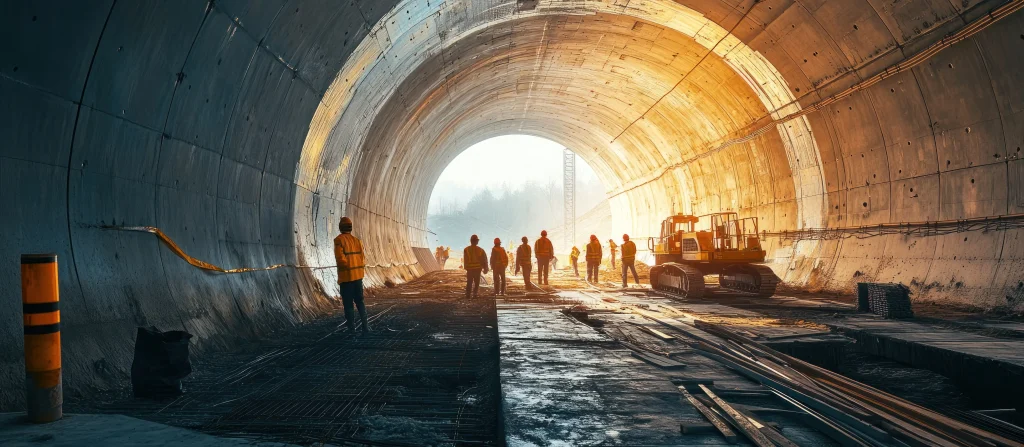

Towering construction cranes dominate the landscape at the tunnel's northern entrance. The portal itself sits recessed at the foot of a high, man-made embankment. Above lies the open, often choppy water of the Baltic Sea. Progress inside the structure is already evident. A senior construction management role within the Femern A/S organisation is held by Anders Gert Wede. Navigating the future motorway section offers a glimpse into the tunnel's internal layout. Each standard element contains five separate, parallel tubes running its entire length. Two tubes are dedicated to high-speed rail lines. Another two tubes will house the dual-carriageway motorway, providing two lanes for traffic moving opposite ways. The fifth passage serves as a dedicated service corridor, crucial for maintenance access and emergency situations, enhancing overall operational safety.
Image Credit - BBC
Sealing and Submerging the Giants
At the seaward end of the elements under construction within the factory, enormous steel bulkheads temporarily restrain the Baltic Sea's waters. Wede noted the considerable thickness and strength of these metal barriers. The process following an element's completion at the Lolland harbour facility is complex. Powerful tugboats carefully tow the massive concrete structure out to its precise designated location within the Fehmarn Belt. Then begins the critical immersion phase. Workers slowly flood ballast tanks within the element, carefully controlling its descent towards the prepared trench on the seabed. This operation occurs behind the protective steel doors, ensuring a controlled environment until the element is securely in place. The procedure demands meticulous planning and execution by highly skilled marine crews working around the clock.
Colossal Weight, Controlled Buoyancy
The sheer physical scale of the tunnel elements is difficult to comprehend fully. Besides their considerable length, each segment registers a weight greater than 73,000 tonnes. This mass equates roughly to the weight of 10,000 adult elephants. Despite this incredible heft, engineering ingenuity allows these concrete behemoths to float. Crews achieve this by ensuring the elements are perfectly sealed and watertight at both ends before leaving the factory harbour. Incorporating specifically designed internal ballast tanks provides adjustable buoyancy. This controlled flotation is what enables relatively small tugboats to manoeuvre the elements across the water surface to the installation site. Managing these forces requires sophisticated calculation and constant monitoring during the towing process. Wind and sea currents present additional challenges that crews must manage effectively.
Precision Engineering Underwater
Lowering a 73,000-tonne structure forty metres beneath the waves into a pre-dug seabed trench requires extraordinary precision. The entire operation relies heavily on advanced technology. Teams utilise underwater remotely operated vehicles (ROVs) equipped with high-resolution cameras. Global Positioning System (GPS) guided equipment provides real-time positioning data. The target tolerance for aligning each successive element is incredibly tight, aiming for an accuracy within just fifteen millimetres. Wede emphasized the absolute necessity for extreme care throughout this delicate procedure. A specialised docking system facilitates the process; engineers refer to it using the term 'pin and catch' mechanism. This apparatus involves a V-shaped receiving structure on the previously laid element and hydraulic arms that gently grasp the incoming element, slowly guiding it into its final, exact position before permanent connection.
A Seabed Trench Foundation
The tunnel elements do not simply rest on the natural seabed. Before any elements could be immersed, extensive dredging work created a wide trench along the entire eighteen-kilometre route. This trench excavation involved removing millions of cubic metres of sand, silt, and glacial till from the Baltic floor. Specialised dredging vessels undertook this massive earthmoving task. Once excavated to the required depth, engineers prepared a precise foundation layer within the trench. This typically consists of carefully graded crushed stone. This foundation provides a stable, level base upon which the heavy concrete elements can securely rest. After placing the elements, further layers of protective rock fill are deposited around and over the structure, burying it securely beneath the seabed floor.
Navigating a Busy Waterway
Denmark occupies a strategic position controlling access between the North Sea and the Baltic Sea. The Fehmarn Belt strait itself is a critical maritime thoroughfare. It experiences high volumes of shipping traffic, including large container vessels, ferries, and tankers navigating between Baltic ports and the wider world. Constructing a major tunnel directly beneath these active maritime routes presented significant logistical challenges. Planners had to coordinate construction activities carefully to minimise disruption to maritime navigation. Safety protocols for both the construction fleet and passing commercial vessels remain paramount throughout the project duration. The Danish and German maritime authorities work closely with Femern A/S to manage vessel movements safely within designated construction zones.
Image Credit - BBC
Rationale for an Immersed Tunnel
The decision to employ the immersed tunnel technique resulted from thorough geological investigations. Professor Per Goltermann is associated with the Technical University of Denmark as an expert in concrete and structures. Goltermann shed light on the sub-surface conditions. The seabed along the tunnel route consists primarily of soft clay layers overlying chalk bedrock. These conditions are generally considered unsuitable for traditional tunnel boring machines (TBMs), which operate most effectively in more stable rock formations. Engineers did initially evaluate alternative crossing solutions, including constructing a long-span bridge across the strait. However, the Fehmarn Belt region is known for strong winds, which could potentially force frequent traffic restrictions or closures on an exposed bridge structure. Security considerations also played a role in the assessment.
Bridge Risks and Tunnel Safety
Professor Goltermann elaborated further on the potential risks associated with a bridge crossing. The significant depth of the water in the Fehmarn Belt allows passage for some of the world's largest ocean-going ships. The possibility of a major vessel collision with bridge piers, while perhaps remote, represented a serious potential hazard. Although engineers could design bridge structures to withstand significant impacts, the associated costs and complexities would be substantial. Considering these factors alongside the challenging wind conditions, the immersed tunnel approach emerged as the preferred solution. Professor Goltermann summarised the assessment: project leaders compared options based on cost-effectiveness and inherent safety, concluding that the tunnel offered the optimal balance for this specific location and its unique challenges.
Overcoming Early Obstacles
A formal agreement was established by Denmark and Germany to proceed with the Fehmarnbelt Fixed Link, dating back to 2008. However, the project's journey from political agreement to physical construction encountered significant delays. Opposition arose from several quarters. Ferry operators, understandably anxious regarding the impact on their existing business model, mounted challenges. Environmental groups, particularly in Germany, also voiced strong reservations regarding the potential ecological consequences of such a large-scale marine construction project. These legal and administrative hurdles postponed the start of major construction works for several years, requiring extensive environmental impact assessments and court proceedings before final approvals were granted. The process highlighted the complexities of delivering major infrastructure projects across international borders.
Addressing Environmental Concerns
Nabu was one prominent environmental organisation expressing reservations; its full name is The Nature And Biodiversity Conservation Union, based in Germany. Nabu specifically argued that the Fehmarn Belt area represents a vital habitat. They highlighted its importance for the larvae of various marine species. Furthermore, the area is known habitat for harbour porpoises, marine mammals protected under European law. These creatures are understood to be particularly affected by subaquatic disturbances generated by construction activities like dredging and piling. Nabu pursued legal action, seeking to halt or modify the project based on these ecological concerns. Their case ultimately progressed through the German court system. In late 2020, Germany's Federal Administrative Court in Leipzig delivered its final ruling, dismissing the remaining legal challenges and effectively giving the green light for construction to proceed fully on both the Danish and German sides.
Mitigation Measures and Nature Compensation
Despite the court's decision favouring construction, Femern A/S maintains it has proactively implemented numerous initiatives. The company aims to minimise the tunnel project's overall environmental footprint. Vincentsen pointed towards significant environmental compensation measures integrated into the project plan. A key example involves the creation of extensive new nature areas. Material dredged from the seabed to create the tunnel trench is being repurposed. This dredged sand, silt, and rock forms the basis for constructing large areas of reclaimed land adjacent to the coastline. Plans include developing approximately 300 hectares of this new land into a combined wetland, nature reserve, and public recreational area near the Danish tunnel entrance on Lolland. Additional offshore reefs are also planned to enhance marine biodiversity.
Projected Usage and Financial Repayment
Femern A/S projects that upon the tunnel's planned 2029 opening, significant daily traffic volumes will occur. Projections suggest in excess of one hundred trains and approximately twelve thousand cars will utilise the crossing each day initially. These figures are expected to grow over time as the tunnel becomes an established element within the European transport network. The financial model underpinning the project relies on toll revenue collection. Income generated from vehicles and trains using the tunnel will service and eventually repay the substantial state-guaranteed loans secured to finance its construction. Vincentsen provided an estimate for this repayment period, suggesting it will likely span roughly four decades based on current traffic forecasts and tolling strategies. The ultimate cost recovery rests with the end-users benefiting from the improved connection.
Boosting the Local Economy
Beyond its strategic transport role, the Fehmarnbelt tunnel project holds considerable promise for regional economic development. Lolland is the specific Danish island playing host to the tunnel's primary construction zone and entrance. This region historically ranks among Denmark's more economically disadvantaged areas. The massive investment associated with developing the tunnel is already injecting significant activity. There is strong anticipation that the project will generate substantial long-term benefits. These include the creation of new jobs, both directly related to tunnel operation and maintenance, and indirectly through stimulated business growth and increased tourism potential. Having grown up locally, Anders Gert Wede observed that residents had awaited this major project for many years. Wede conveyed a sense of optimism regarding the potential for new businesses and economic opportunities arriving in the locality.
Safety Systems within the Tunnel
Ensuring user safety within the eighteen-kilometre underwater structure is a top priority. The design incorporates multiple layers of advanced safety systems. A dedicated service passage including emergency functions runs parallel to the vehicle and train tubes. This provides immediate access for emergency services personnel and vehicles. Sophisticated ventilation systems will manage air quality continuously. Extensive fire detection and suppression systems are integrated throughout the tunnel's length. Real-time monitoring via numerous cameras and sensors will occur from dedicated traffic control centres located at both ends of the passage. Emergency exits and refuge chambers are strategically placed. These comprehensive measures aim to meet the highest international safety standards for automotive and railway tunnels, providing reassurance for the thousands of daily users expected after opening.
Image Credit - BBC
Connecting to Wider Networks
The Fehmarnbelt tunnel is not merely an isolated piece of infrastructure. Planners designed it as an integral component within the wider Trans-European Transport Network (TEN-T). This EU initiative aims to create a seamless, efficient, and sustainable transport system throughout the European area. The tunnel specifically forms a critical link within the Scandinavian-Mediterranean Corridor, one of the nine core TEN-T corridors. On the German side, extensive upgrades to connecting rail lines and motorways are underway or planned to accommodate the increased traffic flows generated by the tunnel. Similarly, Denmark is enhancing its rail infrastructure northwards towards Copenhagen. These coordinated upgrades ensure the tunnel's benefits extend far beyond the immediate crossing, improving freight logistics and passenger travel across a vast swathe of Europe.
A Long History Realised
The concept of a fixed link across the Fehmarn Belt is not new. Discussions and preliminary studies exploring various bridge and tunnel options date back decades. Political and economic factors, alongside engineering challenges, previously prevented the idea from advancing. A treaty agreed in 2008 involving Denmark and Germany marked a decisive political commitment. Subsequent years involved detailed planning, environmental assessments, and navigating the legal challenges before construction could finally commence in earnest. The project's lengthy gestation period reflects the complexities inherent in delivering cross-border megaprojects. Its current realisation represents the culmination of persistent effort and significant long-term investment by both nations, driven by a shared vision of improved connectivity and economic integration within Europe.
Looking Towards 2029 and Beyond
With major construction activities now well advanced, the project remains on schedule for its anticipated opening date in 2029. The immersion of the first tunnel element in 2024 marked a significant visible milestone. Work continues progressing steadily from the Danish side southwards towards Germany. As completion nears, focus will shift towards installing the complex technical systems within the tunnel - railways, signalling, power supply, ventilation, and safety equipment. The Fehmarnbelt Fixed Link represents a bold statement of engineering capability and international cooperation. It promises to reshape travel patterns, facilitate trade, reduce environmental impact, and foster closer ties between Scandinavia and continental Europe for generations to come, solidifying its place as a truly transformative piece of 21st-century infrastructure.
